(1) Perimeter: that is, the length of a white conveyor belt. If the new machine is not equipped with a belt, it needs to tell us the diameter of the active and passive rollers, the center distance between the two rollers, and the tension adjustment range.

（2）寬度：就是白色輸送帶的實際寬度，這個是根據輸送設備來。

(2) Width: the actual width of the white conveyor belt, which is based on the conveyor equipment.

（3）厚度：在知道選型的情況下，需要告知我們輸送帶定制的厚度是多少，滾筒直徑是多少。每一家廠家生產出的卷料，都有自己的實際厚度，在適合滾筒直徑運轉的情況下，選擇合適的厚度。

(3) Thickness: when we know the type selection, we need to tell us the customized thickness of the conveyor belt and the diameter of the roller. The coil produced by each manufacturer has its own actual thickness. In the case of suitable drum diameter operation, select the appropriate thickness.

（4）花紋：輸送帶定制有很多種花紋，因此在選擇花紋帶時，務必跟廠家圖片核對，這樣能采購到準確的花紋，特別是不知道叫法時。

(4) Pattern: there are many patterns for customized conveyor belt, so when choosing the pattern belt, be sure to check with the manufacturer's picture, so that you can purchase the accurate pattern, especially when you don't know the professional name.

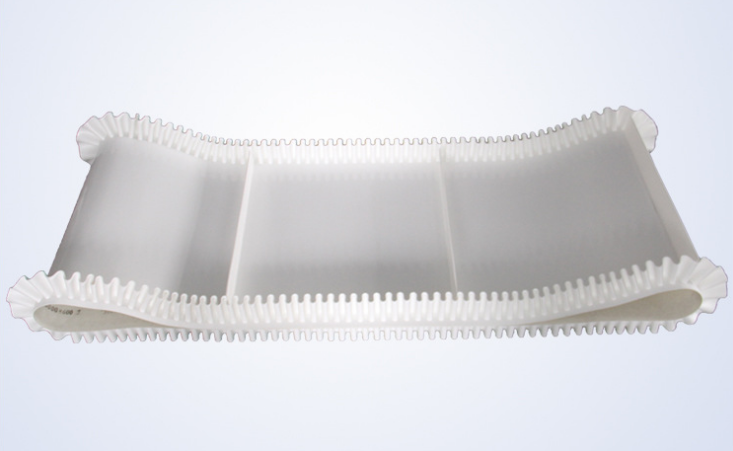

（5）是否需要在輸送帶上加裙邊和擋板，一般爬坡的話都需要。

(5) Whether it is necessary to add skirt and baffle on the conveyor belt is generally required for climbing.

（6）是否需要在輸送帶上加防跑偏導條，用于防止皮帶跑偏。

(6) Whether it is necessary to add anti deviation guide bar on conveyor belt to prevent belt deviation.

（7）輥筒直徑：設計輸送機的滾筒直徑大小不一樣，決定輸送帶厚度不一樣。例如滾筒直徑是70mm，那只能選擇3.0mm及以下厚度，太厚會導致輸送帶轉彎半徑不夠，輸送時造成打滑。

(7) Roller diameter: the roller diameter of the designed conveyor is different, which determines the thickness of the conveyor belt. For example, if the roller diameter is 70mm, only the thickness of 3.0mm and below can be selected. If the roller thickness is too thick, the turning radius of the conveyor belt will not be enough and the belt will slip during conveying.

（8）環境：每一個輸送環境不一樣，輸送帶定制的材質不一樣。高溫環境，要選擇耐高溫材質；油水分離，要選擇耐油材質；無塵環境，要選擇防靜電材質等。

(8) Environment: each conveying environment is different, and the customized material of conveyor belt is different. In high temperature environment, high temperature resistant materials should be selected; Oil resistant material should be selected for oil-water separation; Dust free environment, to choose anti-static materials.

（9）輸送重量：輸送產品的重量不一樣，決定輸送帶拉力強度不一樣。輸送的產品越重，越要的布層抗拉伸強度要求不一樣，越重的產品，需要的布層越多，拉力強度越大。

(9) Conveying weight: the weight of conveying products is different, which determines the tensile strength of conveyor belt. The heavier the product is, the higher the tensile strength of the fabric is. The heavier the product is, the more fabric is needed, and the higher the tensile strength is.

圖片


（10）輸送產品：輸送產品的不一樣，輸送帶定制材質選擇不一樣。輸送食品，要選擇食品級輸送帶；輸送電子產品，要選擇防靜電輸送帶；輸送有動植物油或者工業油的產品，需要選擇耐油輸送帶等。

(10) Conveyor products: conveyor products are different, conveyor belt customized material selection is different. To transport food, we should choose food grade conveyor belt; To transport electronic products, choose antistatic conveyor belt; For the transportation of animal and vegetable oil or industrial oil, it is necessary to choose oil resistant conveyor belt.
