Cover layer: the tensile strength shall not be less than 15MPa, the elongation length shall not be less than 350%, the abrasion amount shall not be less than 200mm 3, the average value of longitudinal samples of the strength between layers shall not be less than 3.2n/mm, and the coverage adhesive shall not be less than 2.1n/mm

全厚度縱向扯斷伸長率不小于10%，全厚度縱向參考力伸長率不大于1.5%

The longitudinal elongation at break of full thickness shall not be less than 10%, and the elongation at longitudinal reference force of full thickness shall not be more than 1.5%

輸送帶跑偏的原因

The cause of the belt deviation

在使用過程中，如果出現跑偏，則要作以下巡查以確定原因，進行進行調整。大傾角擋邊輸送帶用于輸送易散落的粉狀、粒狀、小塊狀、糊狀及液態狀物料。其特點：適用于傾角0°-90°散裝物料的輸送；具有使用范圍廣、占地面積小、無轉運點、減少土建投資、維護費用低、維修容易輸送量大連續化、率、大傾角運輸，操作，使用簡便，，運費低廉，并能縮短運輸距離，降低工程造價，節省人力物力等特點。輸送帶跑偏時常巡查的部位和處理方法有：

In the use process, if there is deviation, the following inspection shall be conducted to determine the cause and make adjustment. The large angle edge retaining conveyor belt is used to transport powder, granular, small, paste and liquid materials which are easy to be scattered. Its characteristics: it is suitable for the transportation of bulk materials with an angle of 0 ° - 90 °; it has the characteristics of wide range of use, small floor area, no transfer point, reduced civil engineering investment, low maintenance cost, easy to maintain and transport Dalian, high efficiency, large angle transportation, safe operation, easy to use, low freight, and can shorten the transportation distance, reduce project cost, save manpower and material resources, etc. The frequently inspected parts and treatment methods for belt deviation are as follows:

（1）巡查托輥橫向線與帶式輸送機縱向線的不重合度。大傾角擋邊輸送帶用于輸送易散落的粉狀、粒狀、小塊狀、糊狀及液態狀物料。其特點：適用于傾角0°-90°散裝物料的輸送；具有使用范圍廣、占地面積小、無轉運點、減少土建投資、維護費用低、維修容易輸送量大連續化、率、大傾角運輸，操作，使用簡便，，運費低廉，并能縮短運輸距離，降低工程造價，節省人力物力等特點。如果不重合度值超過3mm，則應利用托輥組兩側的長形安裝孔對其進行調整。具體方法是輸送帶偏向哪一側，托輥組的哪一側向輸送帶前進的方向前移，或另外一側后移。

(1) Inspect the misalignment between the horizontal center line of idler (g ǔ n) and the vertical center line of belt conveyor. The large angle edge retaining conveyor belt is used to transport powder, granular, small, paste and liquid materials which are easy to be scattered. Its characteristics: it is suitable for the transportation of bulk materials with an angle of 0 ° - 90 °; it has the characteristics of wide range of use, small floor area, no transfer point, reduced civil engineering investment, low maintenance cost, easy to maintain and transport Dalian, high efficiency, large angle transportation, safe operation, easy to use, low freight, and can shorten the transportation distance, reduce project cost, save manpower and material resources, etc. If the non coincidence value exceeds 3mm, it shall be adjusted by using the long mounting holes on both sides of the idler (g ǔ n) group. The specific method is that which side of the conveyor belt is biased, which side of the idler group moves forward to the direction of the conveyor belt, or the other side moves backward.

（2）巡查頭、尾機架安裝軸承(bearing)座的兩個平面的偏差值。大傾角擋邊輸送帶又叫裙邊隔板輸送帶，是由基帶、擋邊、橫隔板3部分組成。擋邊起防止物料測滑撒落的作用。解決了普通帶和花紋帶所不能達到的輸送角度；還可根據使用環境，設計成完整、獨立的輸送系統，避免了間斷輸送和復雜輸送的提升系統。可沿水平、傾斜、垂直和變角方向輸送各種散裝物料，從煤、礦石、沙子到化肥和糧食等。若兩平面的偏差大于1mm，則應對兩平面調整在同一平面內。頭部滾筒的調整方法是：若輸送帶向滾筒的右側跑偏，則滾筒右側的軸承(bearing)座應當向前移動或左側軸承座后移；若輸送帶向滾筒的左側跑偏，則滾筒左側的軸承座應當向前移動或右側軸承座后移。尾部滾筒的調整方法與頭部滾筒剛好相反。

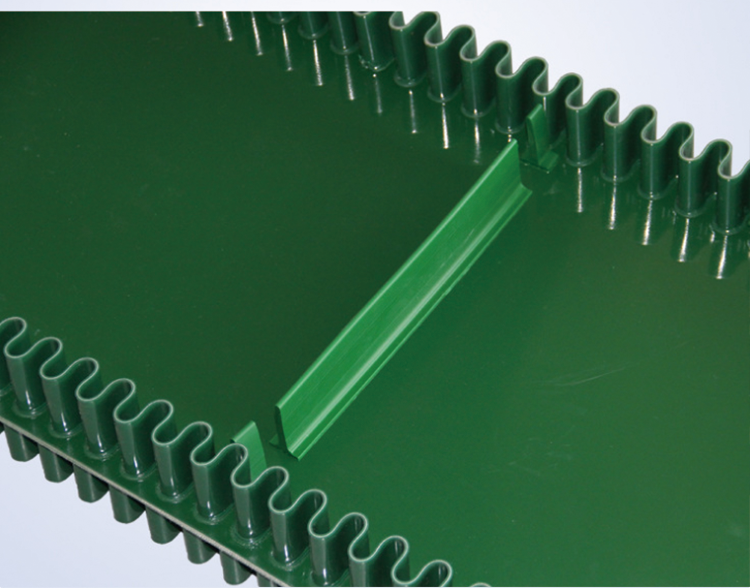

(2) Inspect the deviation value of two planes of the mounting bearing seat of the head and tail frame. The high angle edge blocking conveyor belt, also known as skirt partition conveyor belt, is composed of baseband, edge blocking and diaphragm. The edge guard is used to prevent the material from sliding and scattering. It solves the conveying angle that ordinary belt and pattern belt can't reach; it can also be designed as a complete and independent conveying system according to the use environment, avoiding the lifting system of discontinuous conveying and complex conveying. It can transport all kinds of bulk materials, from coal, ore, sand to fertilizer and grain, along the horizontal, inclined, vertical and variable angle directions. If the deviation between the two planes is greater than 1mm, the two planes shall be adjusted in the same plane. The adjustment method of the head drum is: if the conveyor belt deviates to the right side of the drum, the bearing seat on the right side of the drum shall move forward or the bearing seat on the left side shall move backward; if the conveyor belt deviates to the left side of the drum, the bearing seat on the left side of the drum shall move forward or the bearing seat on the right side shall move backward. The adjustment method of the tail roller is just opposite to that of the head roller.

（3）巡查物料在輸送帶上的位置（position)。物料在輸送帶橫斷面上不居中，將導致輸送帶跑偏。

(3) Inspect the position of the material on the conveyor belt. If the material is not centered on the cross-section of the conveyor belt, the conveyor belt will deviate.
