The modern conveyor system has higher requirements on dust-proof devices. Therefore, water spraying and dust collection devices are set at each transfer point. Besides, windshields or wind shields are also equipped along the conveyor belt. The system is composed of single machine. For operators and repairers working in the whole system, they should not only base on the single machine in their own charge, but also be equipped with wind shields, But also to understand the interrelationship between the systems. Single machine is composed of many parts, only do a good job in the daily maintenance of each part, make it in good working condition, can ensure the safe operation of the equipment.

根據帶式輸送機的使用場所，工作環境，技術性能及輸送物料種類等多方面的不同，以滿足多種作業工況的形式。除了較多的采用通用皮帶輸送機外，還有多種新型結構的特種膠帶輸送機，具有代表性的主要有：大傾角帶式機，深槽帶式機以及壓帶式機，管狀帶式，氣墊帶式，平面轉彎帶式，線摩擦式，波狀擋邊輸送帶式運輸機械等。

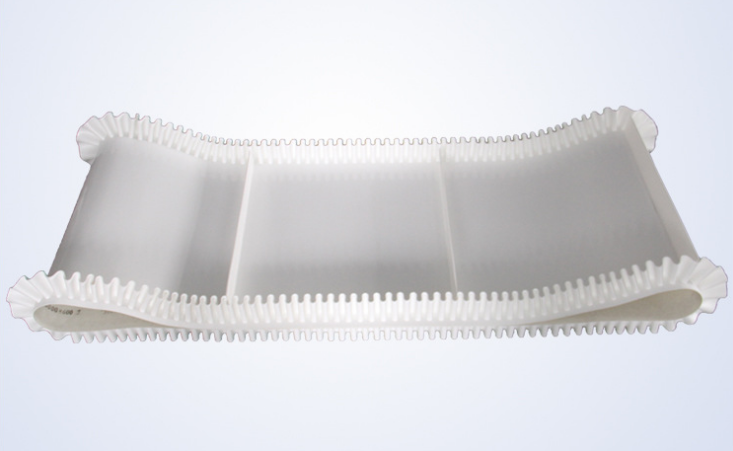

According to the use of the belt conveyor site, working environment, technical performance and conveying material types and other aspects of the different, to meet a variety of working conditions in the form of. In addition to the general belt conveyor, there are many kinds of special belt conveyor with new structure. The representative ones are: large angle belt conveyor, deep groove belt conveyor and pressure belt conveyor, tubular belt conveyor, air cushion belt conveyor, plane turning belt conveyor, line friction conveyor, wavy side belt conveyor, etc.

進行細化又可存在多種分類方式，現作以下介紹：

In addition, there are many kinds of classification methods

按用途分類：有通用移動式，井下選用式，露天礦用固定式，特種結構式，可移置式輸送機，裝載機專用轉載功能式，大傾角式輸送機等。一般來說短距離廠內運輸機可以完成水平，上運或者下運，可逆花紋式皮帶機可以用于雙向輸送物料，懸臂機通常安裝在堆料機上，并可回轉，以實現排土或布料的作用，而由門架支撐的高架機通常配合其他散料處理設備共同使用，例如在水電建設中的應用，可配置標準中間框架，該機架設置在軌枕上，可便于移置；。

According to the use classification: there are general mobile type, underground selection type, open-pit mine fixed type, special structure type, removable conveyor, loader special transfer function type, large angle conveyor, etc. Generally speaking, the short distance in plant conveyor can be used for horizontal, upward or downward transportation. The reversible pattern belt conveyor can be used for two-way transportation of materials. The cantilever machine is usually installed on the stacker and can be rotated to realize the function of dumping or distributing materials. The overhead machine supported by the gantry is usually used together with other bulk material treatment equipment, such as the application in hydropower construction, The standard middle frame can be configured, and the frame is set on the sleeper, which is easy to move;.

按運輸物料的類別來分類：有一般松散物料用的，堅硬物料用的以及單件物料用的皮帶輸送機等。

According to the categories of materials transported, there are general loose materials, hard materials and belt conveyors for single materials.

按橡膠運輸帶承載段的位置來分類，包括皮帶承載段在上面的和承載段在下面的以及同時承載段在上下面的雙向輸送機三種類型，使用雙向輸送機可以分別在上分支和下分支輸送物料，但為了保持物料接觸面不產生改變，需要對橡膠帶進行定期翻轉。

According to the location of the rubber belt bearing section, there are three types of two-way conveyor with the belt bearing section above, the bearing section below, and the bearing section above and below at the same time. The two-way conveyor can respectively transport materials in the upper branch and the lower branch, but in order to keep the material contact surface unchanged, the rubber belt needs to be turned over regularly.
