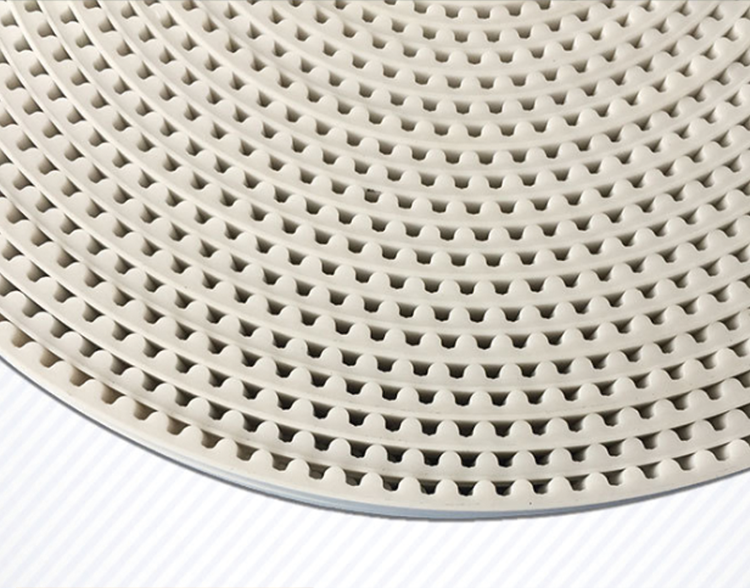

同步帶的分類：根據同步帶齒形的不同分為梯形齒和弧形齒?；⌒锡X又分成圓弧齒，平頂圓弧齒和凹頂拋物線齒。（實際運用常選用公制T系列和高扭矩圓弧齒S系列。如：T5 和S5M）
Classification of synchronous belt: according to different tooth shapes of synchronous belt, it is divided into trapezoidal teeth and arc teeth. Arc tooth is divided into arc tooth, flat top arc tooth and concave top parabola tooth. (metric t series and high torque circular arc tooth s series are often selected in practical application, such as T5 and s5m)
同步輪材質：同步帶輪一般由鋼、鋁合金、黃銅、尼龍、塑膠等材料制造，根據材質和用途的不同采用發黑、鍍鋅、陽極氧化、高頻淬火等表面處理。（實際運行工況一般做動力傳動，需要輕量化設計與減輕負載的轉動慣量常選擇鋁合金材料+陽極氧化處理）
Synchronous pulley material: the synchronous pulley is generally made of steel, aluminum alloy, brass, nylon, plastic and other materials. According to different materials and uses, it adopts blackening, galvanizing, anodizing, high-frequency quenching and other surface treatments. (power transmission is generally used under actual operating conditions, which requires lightweight design and reducing the moment of inertia of load. Aluminum alloy material + anodizing treatment is often selected)
同步輪內孔連接方式：同步輪內孔分：圓孔（免鍵襯套型）、圓孔+螺紋孔、鍵槽孔+螺紋孔、加持型孔。
Connection mode of synchronous wheel inner hole: synchronous wheel inner hole is divided into: round hole (keyless bushing type), round hole + threaded hole, key slot hole + threaded hole and holding hole.
圓孔：與免鍵襯套配合使用，因?yàn)闊o(wú)鍵槽而不會降低軸的強度，并且易于定位，同心度容易保證。（實際運用中常用在絲桿固定端做動力輸入或運用在對寬度需要調節的輸送帶上面方便調整輸送帶的寬度調整）

Round hole: used with keyless bushing, because there is no keyway, it will not reduce the strength of the shaft, and it is easy to locate and ensure the concentricity. (in practical application, it is often used as power input at the fixed end of the screw rod or on the conveyor belt whose width needs to be adjusted to facilitate the width adjustment of the conveyor belt)
同步輪同步帶基礎知識，三分鐘讓你快速了解同步輪同步帶
The basic knowledge of synchronous wheel and synchronous belt allows you to quickly understand the synchronous wheel and synchronous belt in three minutes
圓孔+螺紋孔：通過圓孔進行定位，螺釘固定和傳動扭矩，適用于輕負載。（實際工況很少使用這樣情況，一般對力要求不高，軸徑比較小時才做考慮，且軸上銑偏位）
Round hole + threaded hole: positioning through round hole, screw fixation and transmission torque, suitable for light load. (it is rarely used in actual working conditions. Generally, the force requirements are not high, the shaft diameter ratio is small, and the milling deviation on the shaft)
同步輪同步帶基礎知識，三分鐘讓你快速了解同步輪同步帶
The basic knowledge of synchronous wheel and synchronous belt allows you to quickly understand the synchronous wheel and synchronous belt in three minutes
鍵槽型+螺紋孔型：由鍵槽來傳遞更大的扭矩，適用于中重負載。（選此方式）
Keyway + threaded hole: the keyway transmits greater torque, which is suitable for medium and heavy loads. (most preferred)
同步輪同步帶基礎知識，三分鐘讓你快速了解同步輪同步帶
The basic knowledge of synchronous wheel and synchronous belt allows you to quickly understand the synchronous wheel and synchronous belt in three minutes
夾持型：通過螺栓連接，容易軸向定位。（一般不選用此方式）
Clamping type: through bolt connection, it is easy to locate axially. (this method is generally not used)
同步輪同步帶基礎知識，三分鐘讓你快速了解同步輪同步帶
The basic knowledge of synchronous wheel and synchronous belt allows you to quickly understand the synchronous wheel and synchronous belt in three minutes
同步輪同步帶的安裝要求：安裝時需要注意帶輪軸線的平行度，各帶輪的傳動平面位于同一平面內，防止因?yàn)閹л喥倍箮?cè)面壓緊在擋圈上，造成帶側面磨損。帶的張緊通過調節距或加張緊輪來實現。
Installation requirements for synchronous pulley and synchronous belt: pay attention to the parallelism of pulley axis during installation. The transmission center plane of each pulley is located in the same plane to prevent the belt side from being pressed on the retaining ring due to pulley deflection, resulting in belt side wear. The belt is tensioned by adjusting the center distance or adding tensioning wheels.
