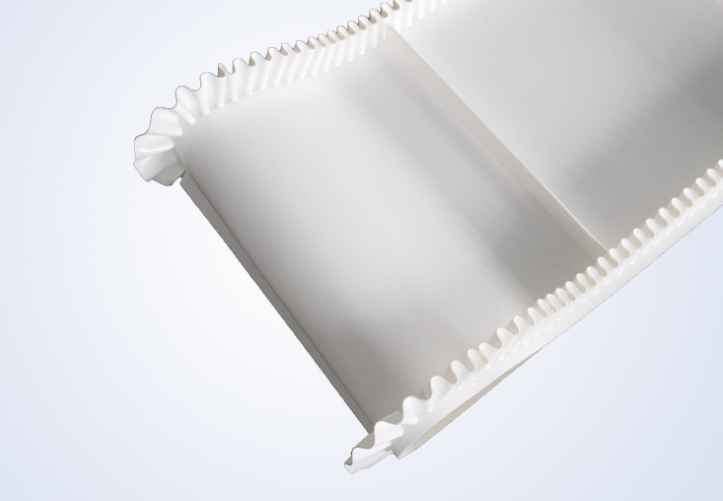

The conveyor belt of vegetable cutter has the functions of cutting resistance, sanitation and durability, acid and alkali resistance, and also has the advantages of no slag falling, wear resistance and cutting resistance. It is more suitable for donkey hide gelatin, pasta and other food processing industries.

切菜機輸送帶常應用于蔬菜、藥材、瓜果、海產品等的切絲、切塊、切片、切丁、切條等輸送。下面君泰橡塑具體介紹下切菜機輸送帶磨損變薄如何維護。

The conveyor belt of vegetable cutter is often used to cut vegetables, medicinal materials, fruits, seafood, etc. The following Juntai rubber and plastic specifically introduces how to maintain the wear and thinning of the conveyor belt of the vegetable cutter.

1、進料和切菜機輸送帶運轉方向相同。在進料過程中，物料以簡直與保送帶相同的速度挪動。

1. Feeding and cutting machine conveyor belt running in the same direction. In the feeding process, the material moves at almost the same speed as the belt.

切菜機輸送帶磨損變薄如何維護

How to maintain the conveyor belt of vegetable cutter

2、切菜機輸送帶上物料的等效自在落體高度小于1米，使保送帶上的沖擊力盡可能小。

2. The equivalent free falling height of the material on the conveyor belt of the vegetable cutter is less than 1m, so that the impact force on the conveyor belt is as small as possible.

3、給料斜槽設有帶式篩，使細料先落在切菜機輸送帶上，為大料提供緩沖。

3. The feeding chute is equipped with belt screen, which makes the fine material fall on the conveyor belt of the vegetable cutter first to provide buffer for the large material.

4、設計合理的溜槽和導向溜槽，使物料連續落在切菜機輸送帶中部。

4. Reasonable chute and guide chute are designed to make the material continuously fall in the middle of the conveyor belt of the vegetable cutter.

5、導向槽的擋板寬度沿保送帶方向越來越窄。此外，導槽應延伸到物料的速度，以到達皮帶的速度。

5. The baffle width of the guide groove becomes narrower and narrower along the direction of the walk belt. In addition, the guide groove should extend to the speed of the material to reach the speed of the belt.

6、進料段應堅持程度或傾斜不超越8度，進料段應裝置緩沖輥或?qū)Σ圯伡用?。另外，溜槽和?dǎo)向槽應固定結實，使其正確地靠在保送帶上，導向底部不能離切菜機輸送帶太近。

6. The feeding section shall not be inclined more than 8 degrees, and buffer roll or groove roll shall be installed in the feeding section. In addition, the chute and guide groove should be fixed firmly, so that they are right against the conveyor belt, and the guide bottom should not be too close to the conveyor belt of the vegetable cutter.
