Knowledge of high angle conveyor belt

大傾角波狀擋邊帶由基帶、擋邊和橫隔3部分組成。擋邊起防止物料測滑撒落的作用。為便于繞過滾筒，同時避免擋板的拉扯損壞，檔邊設計成波紋狀；橫隔板的作用是承托物料，為了實現大傾角輸送，采用T型TC型。檔邊和橫隔板是用二次硫化的方法與基帶連接的，具有很高的連接強度。

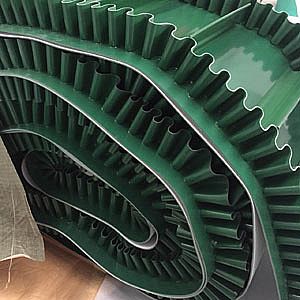

The high angle wavy sideband is composed of base band, sideband and diaphragm. The edge guard is used to prevent the material from sliding and scattering. In order to bypass the drum and avoid the pull damage of the baffle plate, the baffle edge is designed to be corrugated; the diaphragm plate is used to support materials. In order to realize the large angle transportation, T-type TC type is adopted. The baffle and diaphragm are connected with the baseband by the method of secondary vulcanization, with high connection strength.

普通型大傾角波狀擋邊輸送帶的產品特點有：

The product features of ordinary large angle corrugated edge retaining conveyor belt are as follows:

1、增大了輸送角度(30~90度)；

1. Increase the conveying angle (30-90 degrees);

2、占地面積小，投資少；

2. Small area and less investment;

3、輸送量大、提升高度更高；

3. Large conveying capacity and higher lifting height;

4、從水平到傾斜(或垂直)能平穩過渡；

4. Smooth transition from horizontal to inclined (or vertical);

5、適宜易撒落的粉狀、粒狀、小塊狀、糊狀及液態狀等多種物料的輸送；

5. It is suitable for the transportation of powder, granular, small, paste and liquid materials which are easy to be scattered;

6、能耗低、結構簡單、膠帶強度高、使用壽命長。

6. Low energy consumption, simple structure, high belt strength and long service life.
