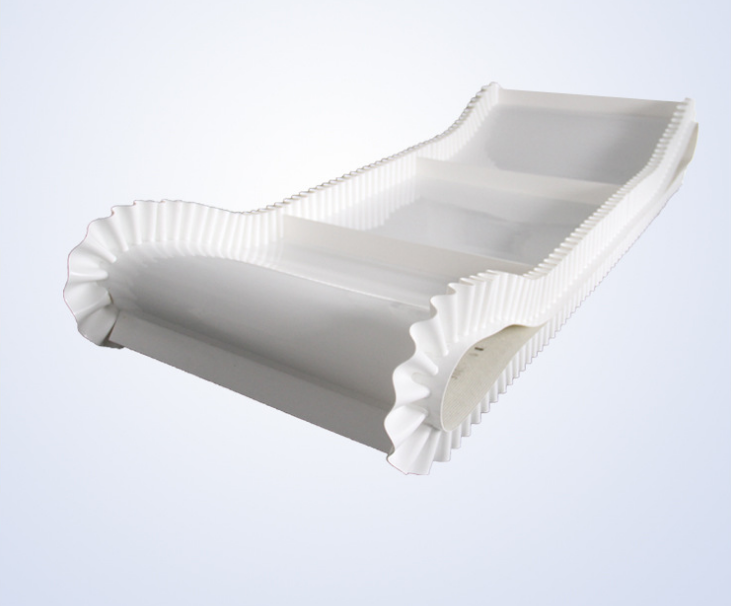

Side conveyor belt is widely used in lifting and conveying of various materials because of its smaller space and low cost. In actual production, skirt and partition are often broken more than other places. Why? Qingdao Jiaoliu? Conveyor belt will find out the reason for you! Only good equipment and good management can make products!

　　一、損壞的主要原因:

　　1、 Main causes of damage:

　　1. 皮帶輪的壓力:

　　1. Pressure of pulley:

　　的大輪和小輪的線速度不同,但焊接大輪和小輪一起力量小輪的速度是一樣的大輪子,這樣小輪形式與裙子的頂部摩擦阻力;

　　The linear speed of big wheel and small wheel is different, but the speed of welding big wheel and small wheel is the same, so the small wheel form and the top friction resistance of skirt;

　　B.小輪直徑大，裙子頂部被迫下壓，加上阻力摩擦，裙子邊緣會很快磨損開裂。

　　B. The diameter of the small wheel is large, the top of the skirt is forced to press down, and with resistance friction, the skirt edge will soon wear and crack.

　　2. 檢查返程長輥的缺陷。從照片上看不出來。無論皮帶是否張緊，如果皮帶不張緊，會導致皮帶在運行過程中上下跳動，撞到托輥，造成裙邊開裂。

　　2. Check the defects of return long roll. I can't see it in the picture. No matter whether the belt is tensioned or not, if the belt is not tensioned, it will cause the belt to run up and down, hit the idler, and cause the skirt to crack.

　　3.短托輥與回程裙邊的距離很小，短托輥的頂部直接接觸并穿裙邊。

　　3. The distance between the short idler and the return skirt is very small, and the top of the short idler directly contacts and passes through the skirt.

　　4. 護墻板頂部外側有明顯的缺角，說明護墻板與鋼件有劃痕和碰撞。

　　4. There is obvious missing angle on the outside of the top of the wall panel, indicating that there are scratches and collisions between the wall panel and the steel parts.

　　二世。改進建議:

　　II. Suggestions for improvement:

　　1、壓帶輪必須更換，小輪有單獨的軸承，使其能獨立自由轉動;小輪直徑減小，正常情況下，使其與裙頂不連接。

　　1. The pressing pulley must be replaced, and the small pulley has a separate bearing, so that it can rotate independently and freely; the diameter of the small pulley is reduced, so that it is not connected with the skirt top under normal circumstances.

　　2. 如果回程長托輥與裙邊接觸，則可將長托輥放低，使裙邊不與之接觸;或者，抬高短托輥，這樣裙子的頂部就不會碰到長托輥。

　　2. If the return long idler is in contact with the skirt, lower the long idler so that the skirt is not in contact with it; or, raise the short idler so that the top of the skirt does not touch the long idler.

　　3.調整短托輥末端與裙邊之間的距離。在脫軌的情況下，托輥的一端不會隨著裙邊磨損。

　　3. Adjust the distance between the end of the short idler and the skirt. In the case of derailment, one end of the idler will not wear with the skirt.

　　三世。:

　　III. a key:

　　1. 輸送帶的裙邊和隔板不得與鋼材直接接觸。凡有接觸處，應采取改進措施接觸點。

　　1. The skirt and partition of the conveyor belt shall not be in direct contact with the steel. Where there is contact, improvement measures shall be taken to eliminate the contact point.

　　2. 裙子的作用是防止布料向兩邊擴散;分離器的作用是輸送物料，防止物料滑動，實現大角度輸送。

　　2. The function of skirt is to prevent cloth from spreading to both sides; the function of separator is to transport materials, prevent materials from sliding, and realize large angle transportation.

　　3.維護原則為:

　　3. Maintenance principle:

　　a、如有損壞，檢查是否與設備有直接接觸;

　　a. If there is any damage, check whether there is direct contact with the equipment;

　　B)隱患。

　　B) Eliminate hidden dangers.
