帶式輸送機是一種通用的輸送機械。隨著經濟的發展，它已經服務于國民經濟建設的各個領域。帶式輸送機可完成物料的水平、傾斜、垂直輸送，也可實現單臺或多臺長距離輸送。根據行業使用和工作條件，客戶可以選擇適合自己需要的帶式輸送機。帶式輸送機因其輸送距離長、輸送能力大、運輸連續、操作簡單、自動化程度高、管理集中等特點，已成為礦山運輸設備的必備產品。今天，我們來談?wù)剮捷斔蜋C(jī)的結構。
Belt conveyor is a kind of general conveying machinery. With the development of economy, it has served all fields of national economic construction. The belt conveyor can complete the horizontal, inclined and vertical transportation of materials, and also can realize the long-distance transportation of single or multiple sets. According to the use and working conditions of the industry, customers can choose the belt conveyor suitable for their own needs. Belt conveyor has become a necessary product of mine transportation equipment because of its long transportation distance, large transportation capacity, continuous transportation, simple operation, high automation and centralized management. Today, let's talk about the structure of belt conveyor.
帶式輸送機主要由以下部件組成:
The belt conveyor is mainly composed of the following parts:

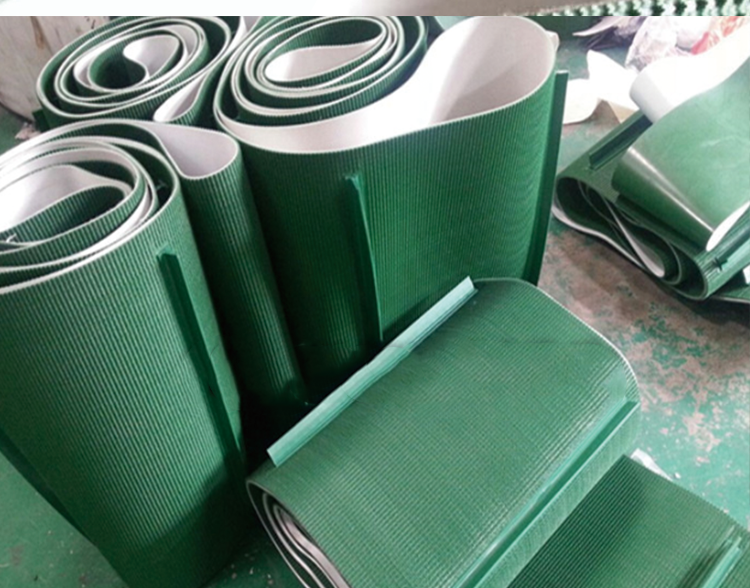

1. 輸送帶:輸送帶的牽引力和承載能力?？筛鶕?jù)工作條件選擇高溫輸送帶和波紋羅紋輸送帶。
1. Conveyor belt: traction and bearing capacity of conveyor belt. High temperature conveyor belt and corrugated rib conveyor belt can be selected according to working conditions.
2. 驅動:它是輸送機的動力部分。
2. Drive: it is the power part of the conveyor.
3.傳動滾筒:傳動滾筒是動力傳動的主要部件，傳動皮帶由傳動皮帶與傳動滾筒之間的摩擦來運轉。
3. Drive drum: the drive drum is the main part of power transmission, and the drive belt is operated by the friction between the drive belt and the drive drum.
4. 改向滾筒:用來改變輸送帶的運行方向。改向輥用于輸送帶的下表面。
4. Direction changing roller: used to change the running direction of the conveyor belt. The deflection roller is used for the lower surface of the conveyor belt.
5. 壓輪:用來改變輸送帶的運行方向。壓輥用于輸送帶的上表面。
5. Pressing wheel: used to change the running direction of the conveyor belt. The pressing roller is used for the upper surface of the conveyor belt.
6. 托輥:托輥用于支撐輸送帶上的物料，使輸送帶平穩運行。
6. Idler: the idler is used to support the materials on the conveyor belt to make the conveyor belt run smoothly.
7. 托輥:托輥用于在凸圓弧框架上支撐輸送帶下支，支撐輸送帶兩側的空氣側。
7. Idler: the idler is used to support the lower support of the conveyor belt on the convex arc frame and the air side on both sides of the conveyor belt.
8. 垂直輥:垂直輥用于限制輸送帶的偏差，安裝在上下過渡架上。每個過濾部分有四個機架，每邊兩個。
8. Vertical roll: the vertical roll is used to limit the deviation of the conveyor belt and installed on the upper and lower transition frames. Each filter section has four racks, two on each side.
9. 砂輪清洗裝置:用于撞擊輸送帶背面，將卡在輸送帶上的物料抖掉。
9. Grinding wheel cleaning device: used to impact the back of the conveyor belt and shake off the materials stuck on the conveyor belt.
10. 張緊裝置:其作用是:(1)輸送足夠的張緊力，保證輸送帶與驅動輥之間無滑移。(2)限制輸送帶支架之間的下垂，使輸送帶正常運行。
10. Tensioning device: its function is: (1) to transport enough tensioning force to ensure that there is no slippage between the conveyor belt and the driving roller. (2) limit the sagging between the conveyor belt supports to make the conveyor belt operate normally.
機架、機頭漏斗、頭罩、導向槽、中間機架、中間機架支架等:輸送機的支撐、除塵、導向裝置。
Frame, head funnel, head cover, guide groove, middle frame, middle frame support, etc.: support, dust removal and guide device of conveyor.
以上是帶式輸送機的各個部件，每個部件將根據不同的工作條件進行調整。
The above are the various parts of the belt conveyor, each part will be adjusted according to different working conditions.
