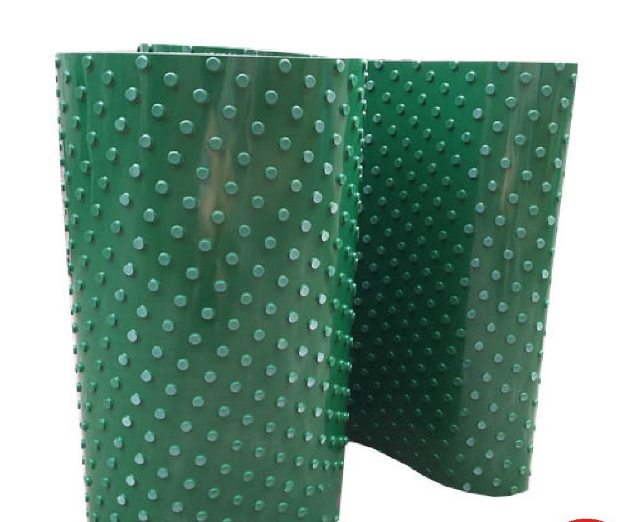

Characteristic: There are granular patterns on the surface of the belt which are higher than the belt body or concave embedded belt body. The pits can also be made into square hole or prism and cloth pattern. Usage: The convex grain pattern is suitable for conveying soft packages or materials with grabbing force (such as cardboard boxes) or non-sliding conveying. The pit-shaped granular pattern is suitable for conveying granular materials with an inclination of less than 45 degrees.

花紋輸送帶扇形花紋

Fan-shaped pattern of pattern conveyor belt

特征：帶面上有呈半扇形（或1/4圓型）花紋。當膠帶成槽時花紋合擾成扇形（或半圓形）、屬高花紋類。  用途：適用于≤60度大傾角輸送粉、顆粒及塊狀物料。

Characteristic: There is a half sector (or 1/4 circle) pattern on the belt surface. When the tape is grooved, the pattern is fan-shaped (or semi-circular) and belongs to the high pattern category. Usage: Suitable for conveying powder, granules and bulk materials at large inclination (< 60 degrees).

本公司可供應花紋輸送帶寬度為≤2400mm。

Our company can supply pattern conveyor bandwidth is less than 2400 mm.

花紋輸送帶是由基帶和花紋兩部分組成，由于運送物料不同和輸送傾角大小不同，要求花紋形狀和高度也不同。常用的花紋輸送帶品種如：人字形花紋輸送帶、八字形花紋輸送帶、魚骨花紋輸送帶、U形花紋輸送帶、圓柱形花紋輸送帶、麻點花紋輸送帶等?；蚋鶕?jù)用戶要求設計，適用于小于30度傾角的粉狀、顆粒狀、及塊狀物料輸送。 三、品種

Patterned conveyor belt is composed of baseband and patterned parts. Because of different conveying materials and different conveying inclination, patterned shapes and heights are required. Commonly used pattern conveyor belt varieties such as: herringbone pattern conveyor belt, octagonal pattern conveyor belt, fishbone pattern conveyor belt, U pattern conveyor belt, cylindrical pattern conveyor belt, dotted pattern conveyor belt, etc. Or design according to user's requirement, suitable for powder, granular and bulk material transportation with less than 30 degrees inclination. Three, varieties

根據(jù)覆蓋膠性能不同分為普通型、耐熱型、耐寒型、耐酸堿型、耐油型等。  四、規(guī)格

According to the different properties of covering glue, it can be divided into common type, heat-resistant type, cold-resistant type, acid-alkali-resistant type, oil-resistant type and so on. Four, specifications

（1）帶芯材質：普通棉帆布（CC)、滌棉混織帆布(CP)、尼龍(NN)、聚酯(EP)等

(1) Core material: common cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.

（2）帶寬：100mm-2000mm

(2) Bandwidth: 100mm-2000mm

（3）布層：2－20層

(3) Layer: 2-20

（4）覆蓋膠：工作面：1.5-10mm  非工作面：0mm-4.5mm

(4) Covering glue: working face: 1.5-10 mm non-working face: 0 mm-4.5 mm
